(120V) 84V/3.0A UL Charger (120V) 84V/3.0A UL Charger

Share this:
  • Model: SSLC300V84
  • Brand: Sans
  • Technical Specifications
  • Certificates

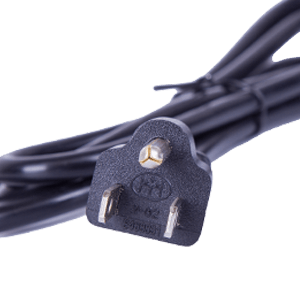

  • Input & Output Cords

Product Detail
72V Charger is designed for electric motorcycles. We believe environmental protection of transport facilities has a significant role to play in the future of new energy development. We are always ready to help you to develp new products and business earlier than the market.
Shell Size: 205mm*102mm*52mm

Pull In Spec Sheet

Rated voltage  120V
Voltage Range 100Vac -240Vac
Frequency Range47Hz -63Hz
No-load PowerMax 3W
No-load Input Current≤ 65 mA

Drop Out Spec Sheet
Output Voltage 84.0V
Output Current 3.0A±0.3A
Output Voltage Range 83.8V≤Vo≤84.2V
Output voltage ripple and noise ≤840mVp-p
Voltage Output Mode Trigger Output

Packing Detail
Inner box size: 255*155*65mm
Carton size: 490*280*220mm
Quantity: 9
Net weight: 1324g
Gross Weight: 14KG
Packing Box: Neutral kraft paper
