Electric Bike Battery Chargers
Manufacturer & Wholesaler

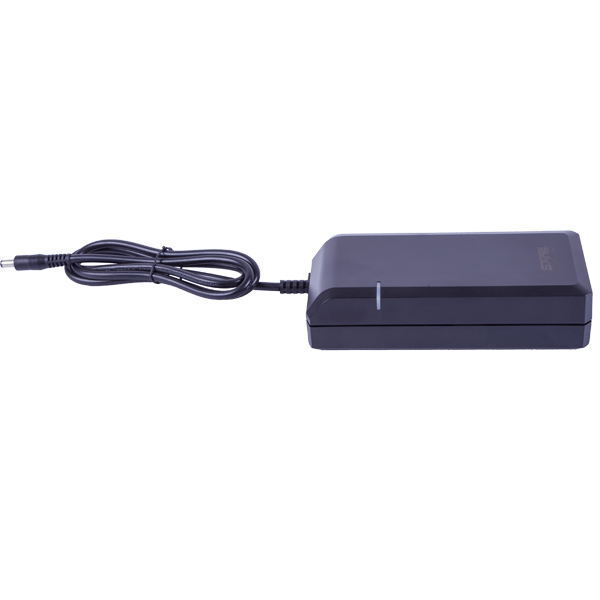

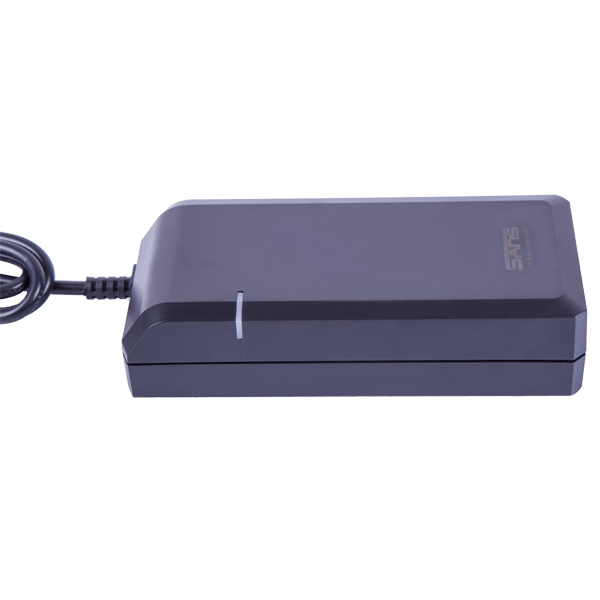

24V / 2A Smart Chargers 24V / 2A Smart Chargers

The smart charger is a unique charger with blue LED light. It does not only have exquisite appearance but also have robust function. You should be never worried about that forgot to unplug the charger, because with its time protection, the charger will be shut off automatically after operating about 24 hours.

Quantity:
Share this:
  • Model: SSLC058V29S
  • Brand: Sans
  • Code: 24V/2A
  • Technical Specifications

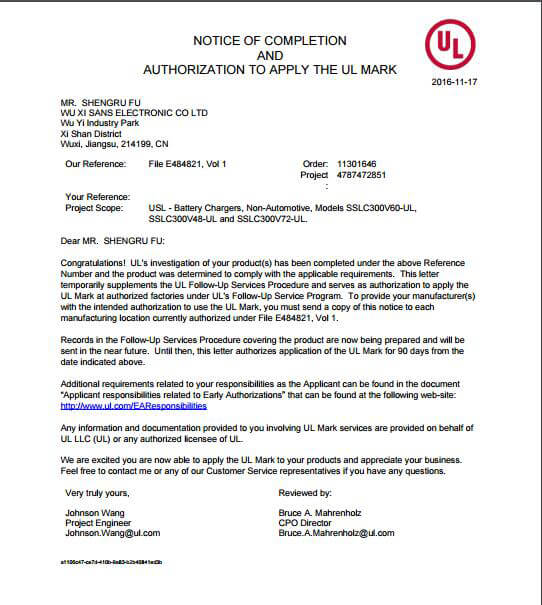

  • Certificates


Product Detail
The smart charger is a unique charger with bule LED light. It does not only have exquisite appearance but also have robust function. You should be never worried about that forgot to unplug the charger, because with its time protection, the charger will be shut off automaticlly after operating about 24 hours.
Shell Size: 171mm*79mm*44mm

Pull In Spec Sheet

Rated voltage  110/220V
Voltage Range 100Vac -240Vac
Frequency Range47Hz -63Hz
EfficiencyMin80%
No-load PowerMax 2W
No-load Input Current≤ 65 mA

Drop Out Spec Sheet
Output Voltage29.40V
Output Current 2.0A±0.2A
Output Voltage Range29.20V≤Vo≤29.60V
Output voltage ripple and noise≤300mVp-p
Voltage Output Mode Trigger Output

Packing Detail

Inner box size: 218*135*55mm

Carton size: 450*440*300mm

Quantity: 30

MOQ:150 PCS

Net weight: 494g

Gross Weight: 17KG

Packing Box: Neutral kraft paper




×
